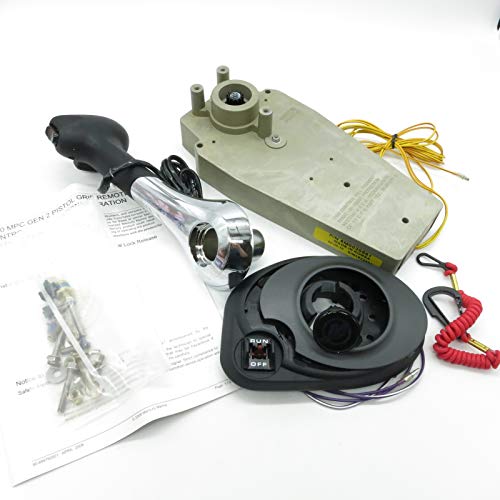

* 8M0030551 Mercury Marine MPC Panel MPC Chrome/160F

8M0030551 Mercury Marine MPC Panel MPC Chrome

Panel Mount controls features a chrome handle and comes with a 4ft trim and trailer switch harness with the 4 pin Molex Connector. All installations require a separate Ignition/Choke assembly and T/S cables to complete the installation. Neutral safety switch leads are 6.5ft and have bullet connectors on the ends. The lanyard switch leads also have bullet style connectors at the ends.

Must use GEN II Throttle/Shift cables (897978A)

Power trim extension harness also needs to be bought separately (84-817659T01, 84-881125A1= 4 pin Molex to traditional Mercury 3 blade P/T connector)

(84-865772T01, 84-865772T02 = 4 pin Molex to the Packard 3 pin P/T connector)

Fits all current MCM and Mercury/Mariner 3.4L outboards with external trim cylinders
